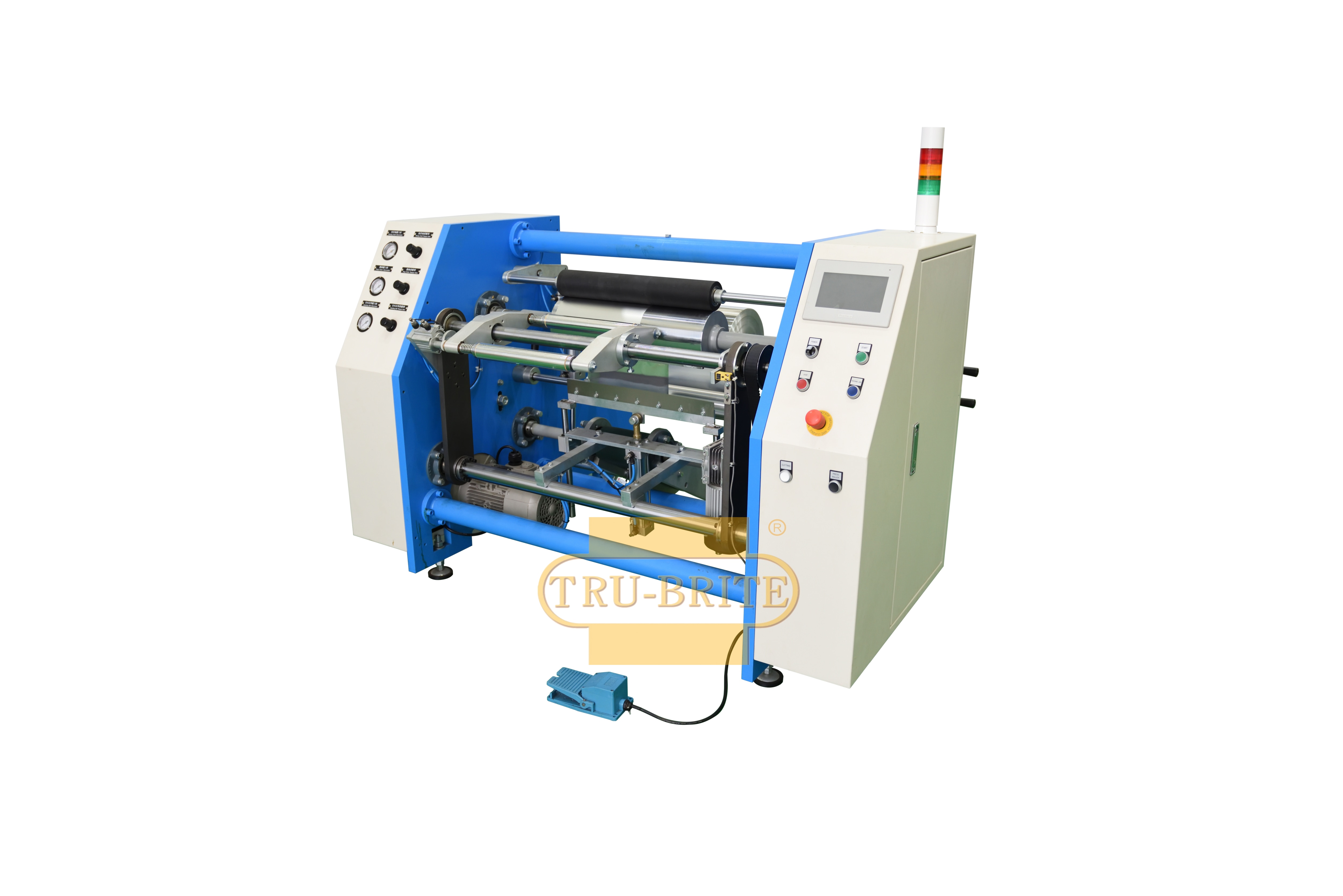

Two-Shaft Type Semi-Automatic Aluminum Foil / Cling Film Rewinding Machine
SRB-A-2S (20-50)
The semi-automatic aluminum foil & cling film rewinding machine SRB-A-2S is a multi-functional model. It's mainly for rewinding aluminum foil, PE/PVC cling film, and the industrial stretch film.
SRB-A-2S can be chosen to automatically cutting through its control button.
Users can choose the function of automatic rewinding after the shaft is pressing down. This is more convenient and quicker for users operations.
It uses the motor to changing shafts, that makes a more precise shaft changing.
Machine has a magnetic powder brake that makes a more accurate product length.
The weight during rewinding can be viewed at any time on the touch screen.
The parameters can be set according to the user's usage habits to achieve higher rewinding efficiency.
Raw Material | Aluminum foil / Cling film / Stretch film |
Mother roll core diameter | 3” (76 mm) |
Max mother roll diameter | 700 mm |
Mother roll available width | 200 - 500 mm |
Material thickness | 9 - 20 micron |
Length of the finished rolls | 5 - 1000 m |
Finished roll outer diameter | 230 mm(Max.) |
Finished paper roll inner core diameter | 25 - 50 mm |
Finished paper roll length | 205 - 520 mm |
Speed | 500 m/min (Max.) |
Installed power | 3.5 KW |
Compressed air | 0.5 - 0.8 Mpa |
Power supply | 220V, 50Hz, 3ph |
Dimensions L x W x H | 1550 x 1500 x 1330 mm |
Net weight | 400 kg |
