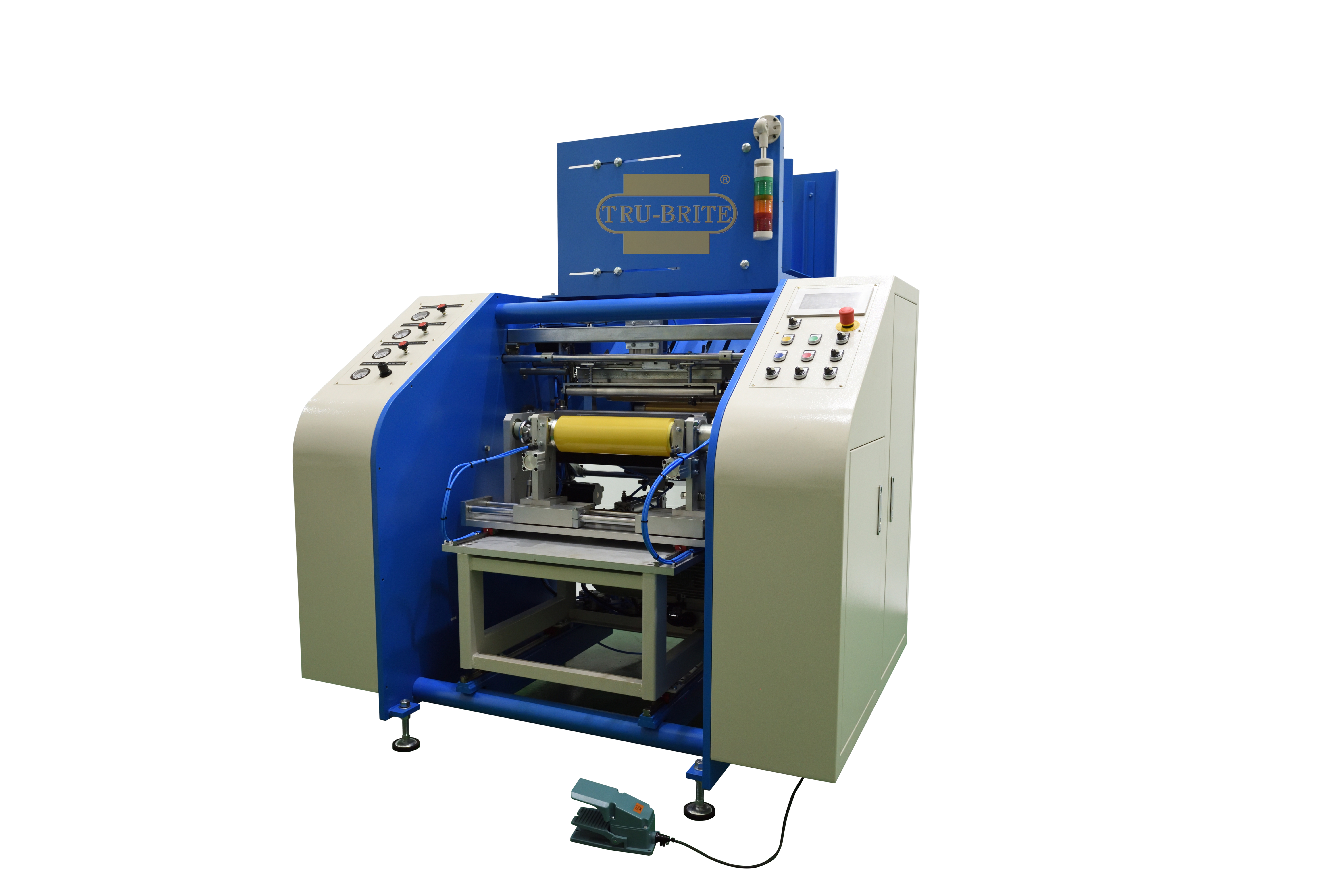

Four-shaft Automatic Cling Film Rewinding Machine
AH-FW-4S (20-50)
Automatic cling film rewinding machine (AH-FW-4S) is mainly used to produce small rolls of household PE/PVC cling film.
This rewinding machine can be customized according to the user's mother roll width: 200-300mm & 200-500mm.
It's equipped with four winding shafts, fully automatic core loading, rewinding, cutting, and product unloading.
The touch panel can view the various data during rewinding, such as line speed, quantity/minute, production quantity, single roll length, total length accumulation and so on.
The settings are also set through the machine data, the speed and length of some functions according to the user’s habits, so that the user can operate the machine more conveniently, and increase the production capacity of mechanical rewinding.

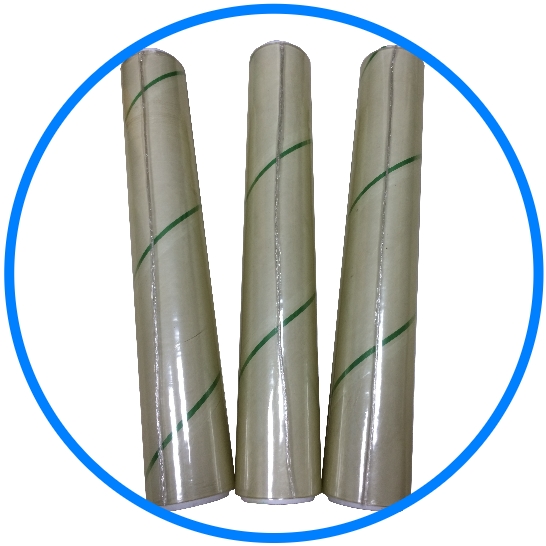

It is worth mentioning that it has an optional curling device to curl the end of the roll. When opening a new roll, your customers will no longer be upset by tearing the film. In addition, there is no need to use label stickers on the finished product.
This automatic cling film rewinder (AH-FW-4S) makes it easier and faster for you to operate machinery, and also makes your customers like your products more.
Model | AH-FW 20-30 | AH-FW 20-50 |
|---|---|---|
Raw Material | PE / PVC Food Wrapping Film | |
Mother roll outer diameter | 400 mm | |
Mother roll inner core diameter | 3" (76 mm) | |
Mother roll available width | 200 - 300 mm(adjustable) | 200 - 500 mm(adjustable) |
Material thickness | 9 - 20 micron | |
Length of the finished products | 3 - 60 M | |
Finished roll outer diameter | 100 mm | |
Finished paper roll inner core diameter | 25 - 38 mmm | |
Finished paper roll length | 210 - 320mm | 210 - 520mm |
Speed | 500 m/min (Max.) | |
Installed power | 4 KW | |
Compressed air | 0.5 - 0.8 Mpa | |
Power supply | 220V, 50Hz, 3ph | |
Dimensions L x W x H | 1850 x 1700 x 1750 mm | |
Net weight | 1000 kg | |
Please feel free to contact us if you have any question.
Our staff can serve you at anytime.
